| Item | Background And Microwave Sterilization Pyrolysis System Medical Waste Introduction |

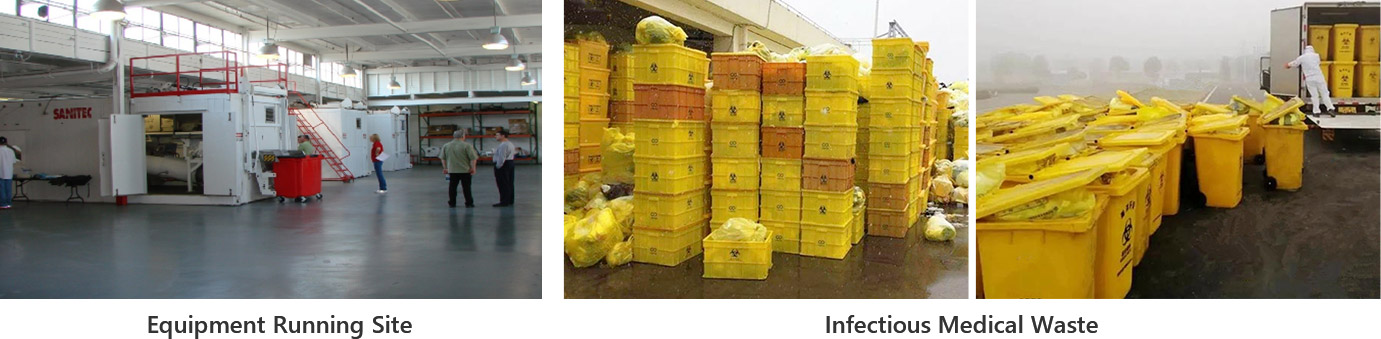

| Medical waste background | Medical waste is highly infectious and corrosive, and improper discharge management or treatment will cause pollution to water sources, atmosphere, soil and direct harm to the human body |
| Microwave Sterilization System | “Medical waste microwave sterilization and pyrolysis equipment production line” as one new type of American high-end energy-saving and environmental protection equipment combines the world’s most cutting-edge green technology medical waste microwave sterilization technology and Henan Lvkun’s high-end energy-saving and environmental protection technology, ending the history that medical waste can only be landfilled after treatment on a global scale |
| Item | Lvkun Medical Waste Treatment Production Line Fetures |
| Environmental protection guarantee | The microwave sterilization medical waste equipment has passed the environmental protection certification of the United States, Britain, Canada, Australia, India, Russia and other countries |
| Technical guarantee | Continuous feeding and continuous slag discharge in a fully enclosed state can be realized at a high temperature of 350 degrees |
| Profit guarantee(take china as an example) | The annual gross profit of processing 6-8 tons of medical waste per day is 10 million, and the net profit is about 7 million. 15-20 tons per day production line can solve all the medical waste generated on the day, and it can be recycled full cost within 2 years |

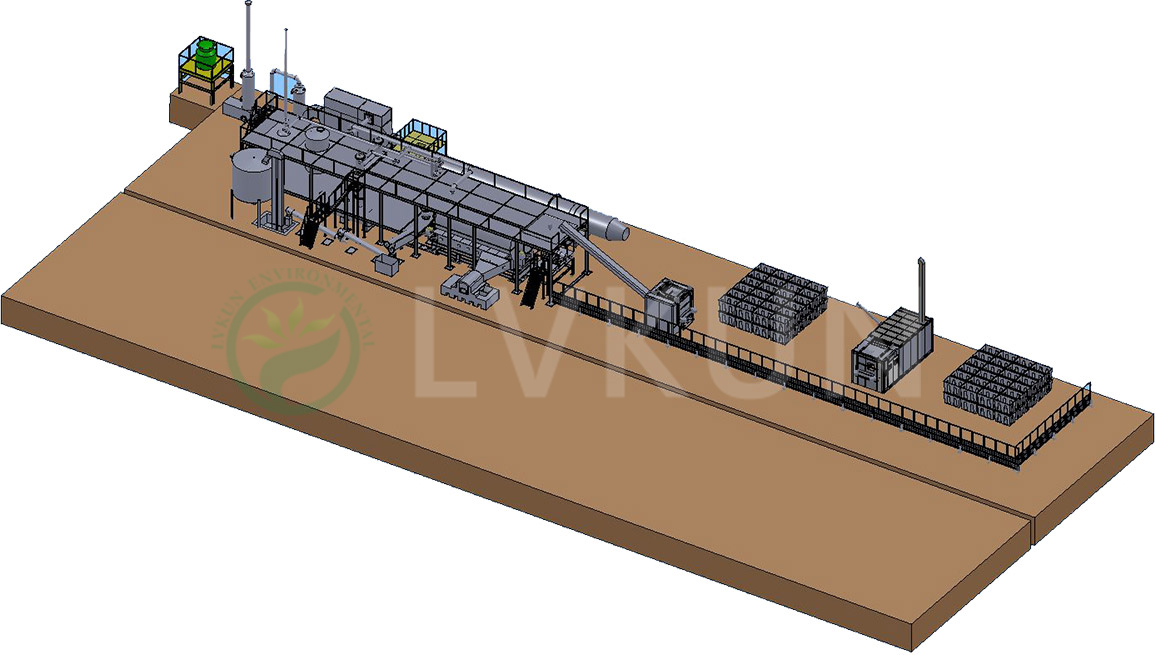

| Item | Lvkun Medical Waste Treatment Production Line Process Flow |
| Continuous negative pressure | The crushed, microwave-sterilized waste medical is pretreated into a negative pressure state continuous fracture decomposition processor, catalytically heated, and the oil vapor is distilled |

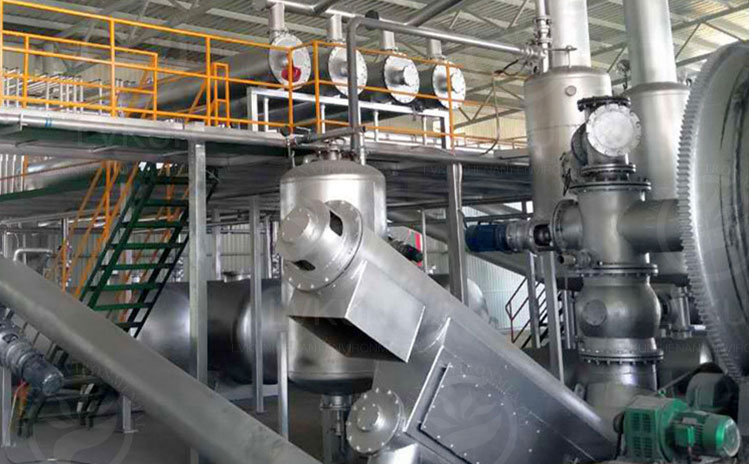

| Automatic discharged | The oil and gas pass through the light and heavy component separation device, and the light component enters the condenser, and the slag automatically discharged, liquefiable part is condensed into fuel oil, and the non-liquefiable part is input to the heating system for combustion through the gas purification system |
| Environmental protection certification | The microwave sterilization equipment has passed the environmental protection certification of the United States, the European Union, South America, the United Kingdom, Canada, Australia, India, Russia and other countries |
| Model | LKP-6 | LKP-8 | LKP-12 | LKP-15 | LKP-20 | LKP-40 |
| Size of Reactor(M) | D2.2*L6.0 | D2.8*L6.2 | D2.8*L7.1 | D2.8*L8.0 | D2.8*L8.8 | L26*W1.8*H2.5 |
| Daily Capacity | 5-6T/D | 8T/D | 10-12T/D | 15T/D | 16-20T/D | 30-40T/D |
| Power | 24kw/h | 30kw/h | 36kw/h | 40kw/h | 56kw/h | 108kw/h |
| Working Method | Intermittent/Batch | Semi-continuous | Full-continuous | |||
| Heating Material | Natural gas/Oil/Wood/Coal/LPG and so on | |||||
| Reactor Thickness | 12mm/16mm/18mm | |||||
| Rotate Speed of Reactor | 0.4turn/minute | |||||
| Cooling Method | Water cycling cooling | |||||
| Labor Required | 4-6 person in two or three shifts | |||||
| Economic Benefit Analysis of Medical Waste Recycling Machine | |
| Direct benefits： | |
| 1. Raw material | 20tons |
| 2. Fuel oil | 8tons*USD560.00/ton=USD2080.00 |
| 3. Carbon black | 20tons*35%*USD80.0/ton=USD560.0 |
| 4. Metal | 20tons*5%*USD280/ton=USD280.00 |
| Subtotal: USD 2920.00 | |
| Costs: | |
| 1. Medical waste | The government subsidies depend on the local conditions |
| 2. 8*Workers for loading,crushing,feeding | 8*USD15/person=USD120.0 |
| 3. Burner operator | 4*USD15/person=USD60.0 |
| Subtotal: USD180.0 | |
| 1. Fuel(coal) | Diesel as sample, 480Liter, USD0.78/L；USD0.78/L*480L=USD374.4 |
| 2. Water and Electricity | 50kw*USD0.1/kw*20hours=USD100.0 |
| 3. Depreciation：USD100.0/day | |
| Subtotal: USD574.4 | |
| In total: USD 754.4 | |
| Profit: | |
| Daily profit=direct profit(USD2920.00)-costs(USD754.4)=USD2165.6 | |
| Monthly profit: USD2165.6*30days=USD64,968.0 | |
| Yearly profit ( 10 months ) : USD64,968.0 *10months=USD 649,680.0 | |
